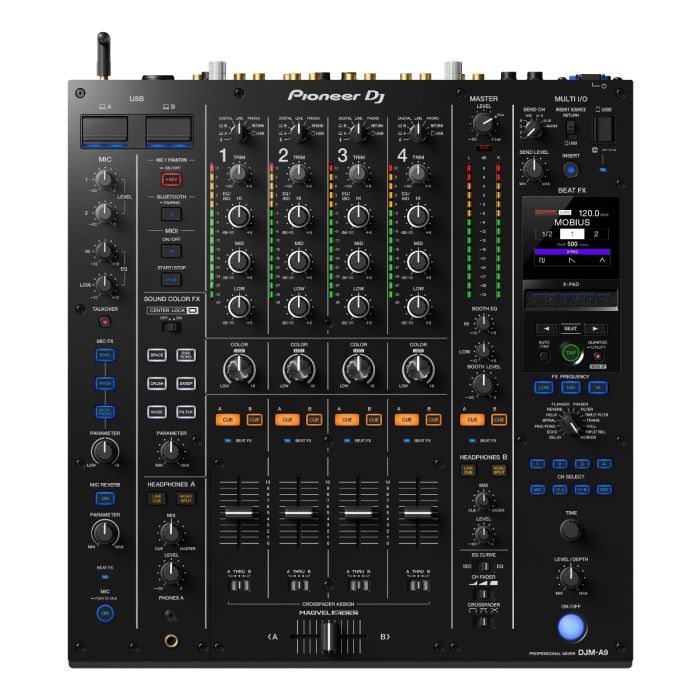

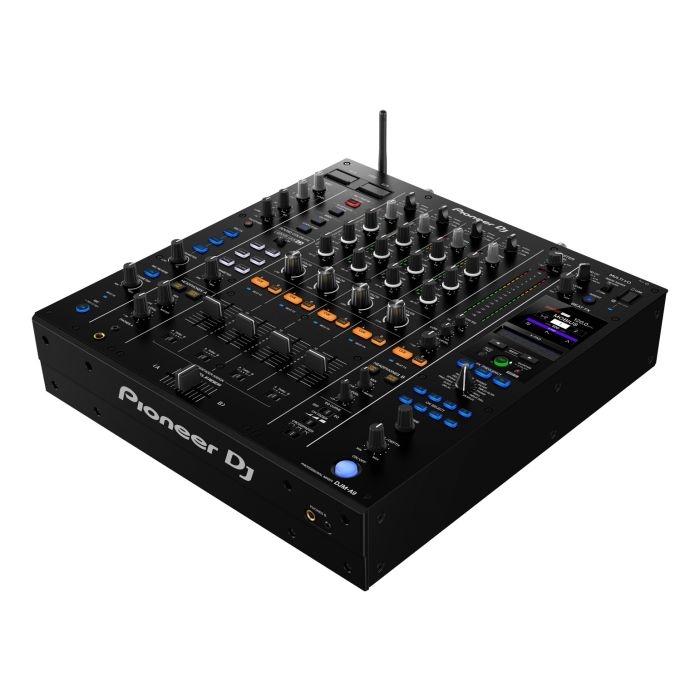

Hire Pioneer DJM-A9

Pioneer DJM-A9 Technical Specifications

Audio & Signal Processing

• Sampling rate: 96 kHz

• A/D converter (channel inputs): 32-bit

• D/A converter (Master/Booth/REC/SEND): 32-bit

• Signal-to-noise ratio:

  • Line: 105 dB

  • Phono: 88 dB

  • Mic: 79 dB

• Total harmonic distortion (LINE → MASTER1): < 0.005%

• Frequency response (LINE): 20 Hz – 40 kHz

Mixer Configuration

• Channels: 4

• EQ/Isolator: 3-band per channel (-26 dB to +6 dB)

• Crossfader: MAGVEL Fader, 3-curve selectable

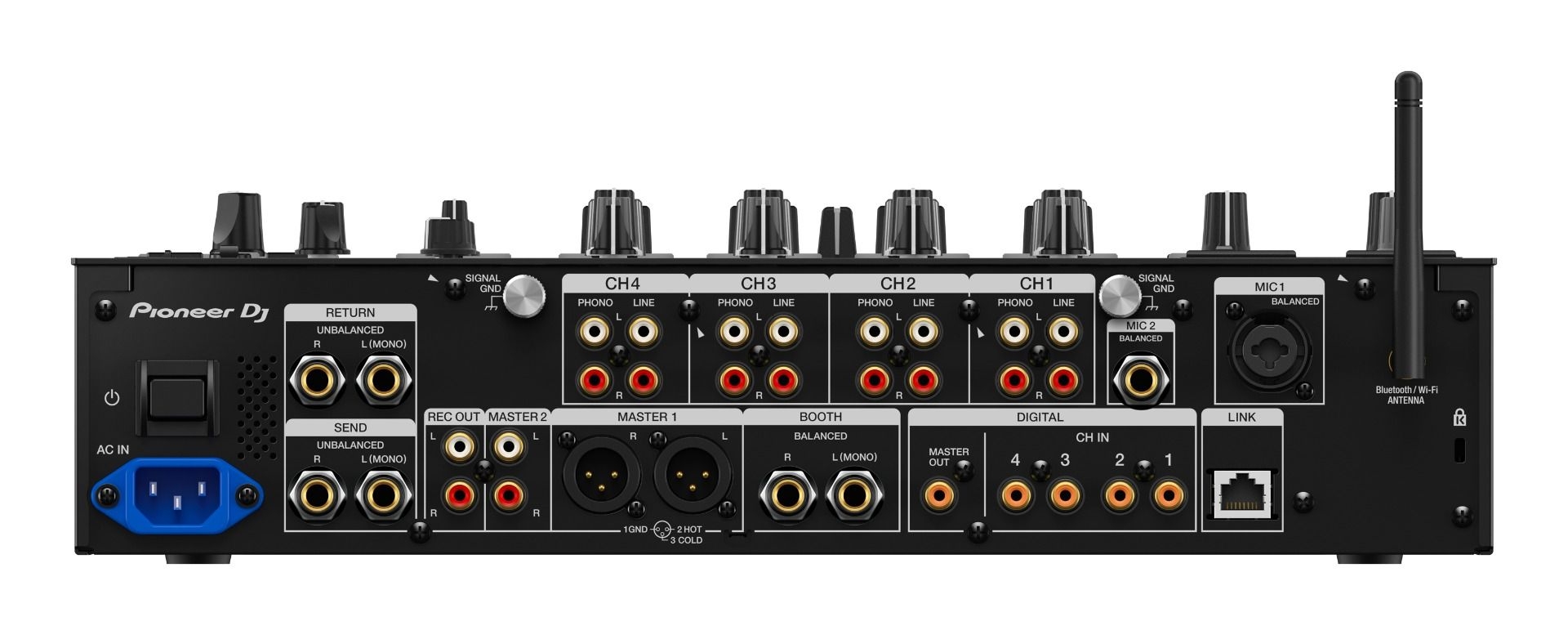

Inputs

• Line: 4 × RCA

• Phono: 4 × RCA

• Digital: 4 × coaxial S/PDIF

• Microphones:

  • 1 × XLR / ¼″ combo input

  • 1 × ¼″ TRS input

  • Phantom power supported

Outputs

• Master Output: 1 × XLR, 1 × RCA

• Booth Output: ¼″ TRS

• Record Output: RCA

• Digital Master Out: 1 × coaxial

• Headphone Outputs:

  • 2 × ¼″ stereo jack

  • 2 × 3.5 mm mini-jack

Connectivity

• USB:

  • 1 × USB-A

  • 2 × USB-C (dual audio interface)

• Send / Return: ¼″ TS send & return

• Ethernet: 1 × RJ-45 (Pro DJ Link / control)

• Wireless:

  • Bluetooth® input (approx. 10 m range, 2.4 GHz)

  • Wi-Fi (2.4 GHz / 5 GHz)

Effects

• Sound Color FX (6 types):
  Space, Dub Echo, Sweep, Noise, Crush, Filter

• Beat FX (14 types):
  Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Flanger, Phaser, Filter, Trans, Roll, Triplet Filter, Triplet Roll, Mobius

• X-Pad touch strip control

• Center Lock for Color FX

Headphone Section

• Dual independent headphone outputs

• Separate cue/mix and level controls for each

Software & Compatibility

• Supported software: rekordbox, Serato DJ Pro (when licensed), Stagehand

• MIDI control: Yes

Dimensions & Power

• Dimensions (WxDxH):
  407.4 × 458.3 × 107.9 mm
  (Height with antenna upright: 140.7 mm)

• Weight: approx. 10.2 kg / 22.5 lb

• Power consumption: 46 W

Terms and Conditions

By entering into this hire agreement you are accepting our Terms and Conditions of the Hire upon receipt of goods and/or services from SBS Audio Visual.

Receipt includes arrival of equipment and/or staff on an event site, whether the customer is present or not. All equipment hired remains the property of SBS Audio Visual Ltd at all times.

Payment by the Customer on time under the Contract is an essential condition of the Contract. Payment shall not be deemed to be made until SBS Audio Visual has received either cash or cleared funds in respect of the full amount outstanding. If the Customer fails to make any payment in full on the due date we may charge the Customer interest on the amount unpaid at the rate of 8% implied by law under the Late Payment of Commercial Debts (Interest) Act 1998.

The Customer shall pay all sums due to the Supplier under this Contract without any set-off, deduction, counterclaim and/or any other withholding of monies.

The Hirer accepts full responsibility to SBS Audio Visual for loss or damage to or destruction of the equipment suffered during the period of hire from whatever cause the same may arise and is fully responsible for the safekeeping of the equipment and its return in equal order to SBS Audio Visual at the end of the hire.

The Hirer accepts all liability & responsibility in respect of & shall & completely indemnify SBS Audio Visual against all third party claims & losses howsoever arising in respect of damage to or loss or destruction of any property or in respect of the personal injury or death of anybody in any way caused by or relating to the equipment or its use.
