Festival Stage - Sound & Lighting DVA Package

8m x 6m Mobile Outdoor Trailer Stage
x 20

Hire dB Technologies T12 3000W Line Array Module
x 10

Hire dB Technologies S30n 3000W RMS Twin 18 Subwoofer
x 2

Hire dB Technologies Sigma 115 1000W RMS 2 Way Speaker
x 2

Hire dB Technologies Sigma 118 1400W RMS Subwoofer

Allen & Heath dLive S5000 Control Service

Allen & Heath SQ-7 Digital Mixer
x 6

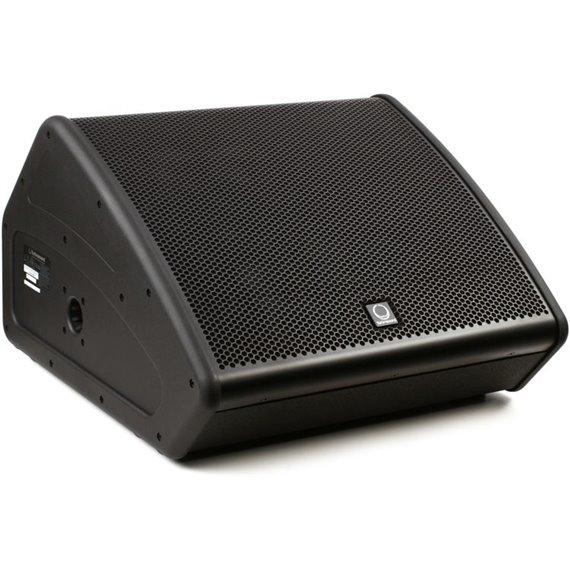

15inch Low Profile 1000w Stage Monitor
  1. This product is not available at this time.

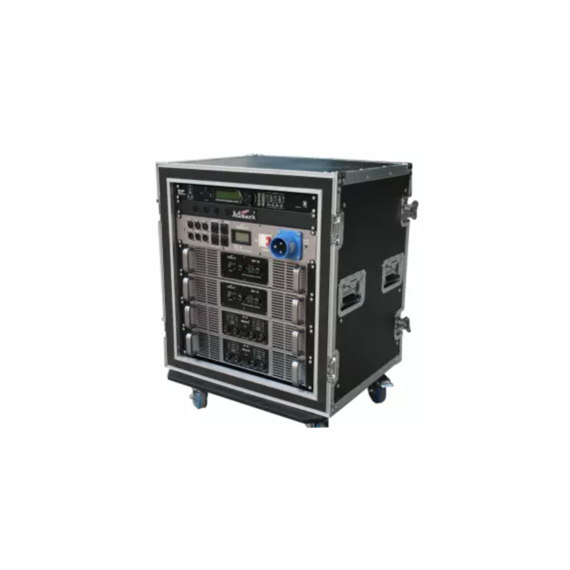

Matrix 6 way Speaker / Monitor Amplifier Rack
x 8

ADJ Vizi Beam 5RX
x 6

ADJ Inno Color Beam Z19
x 8

LEDJ Pixel Storm 12 Quad Batten MKII
x 4

Chauvet Strike 4 LED wash
  1. This product is not available at this time.
x 2

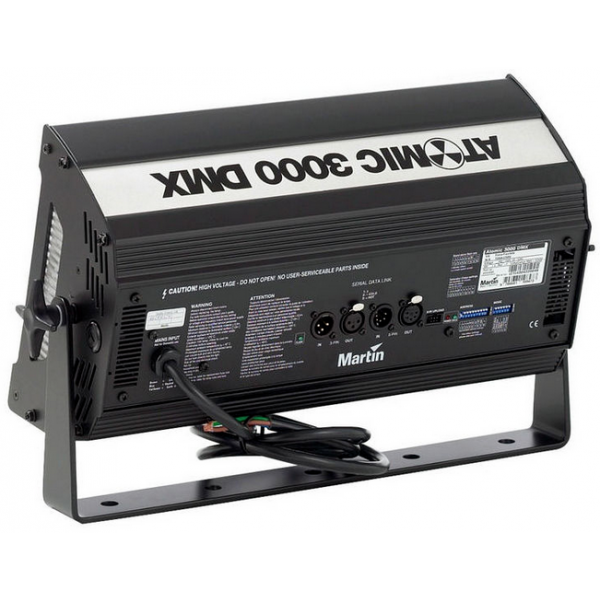

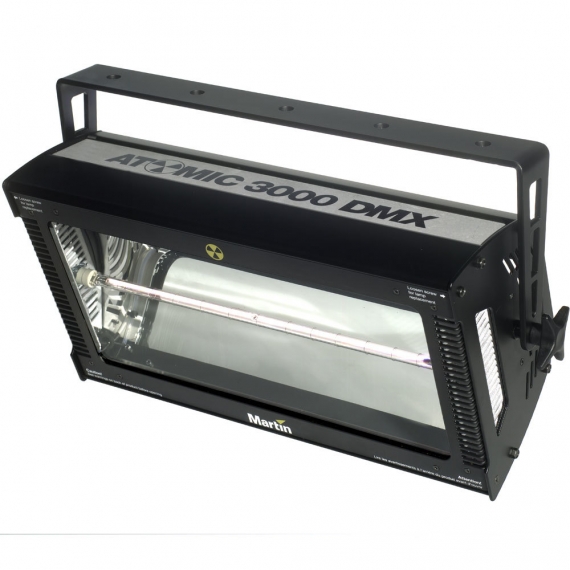

Hire or rent Martin Atomic 3000 Strobe Light
  1. This product is not available at this time.

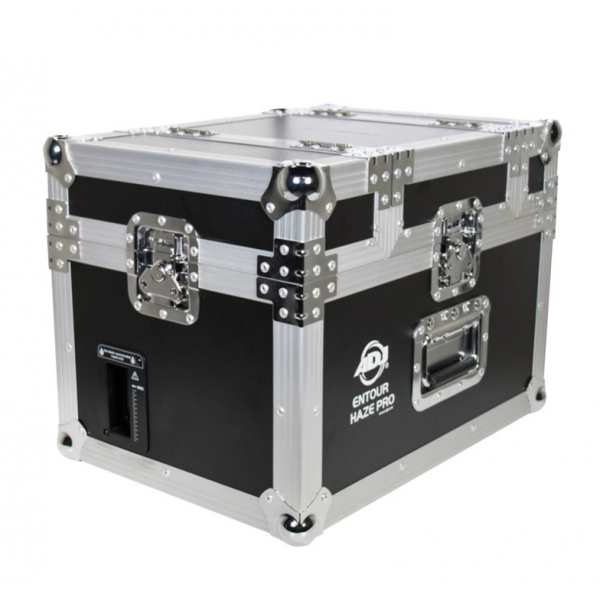

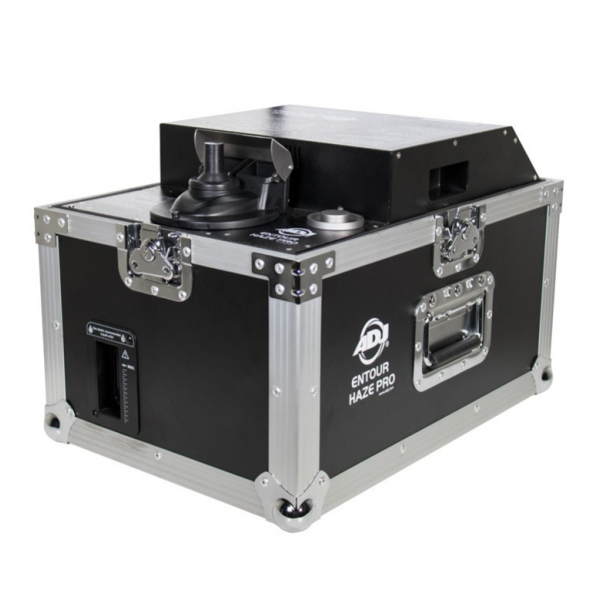

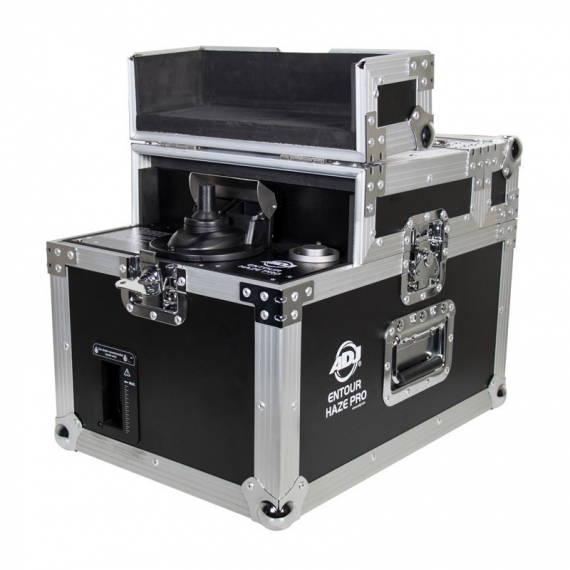

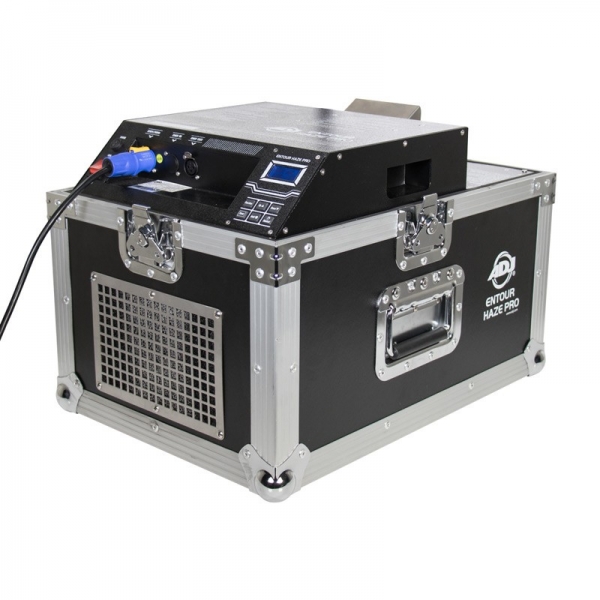

ADJ Entour Haze Pro
Festival Stage - Sound & Lighting DVA Package

Hire Festival Stage - Sound & Lighting DVA Package

    • Day£7,953.22
    • Weekend£15,906.43
    • Week£23,859.65

One of product is no longer available. This pack cant be purchased

Festival stage for up to 5000 Capacity

Consisting of the following

Staging

8m x 6m Trailer Stage
or
10m x 6m Trailer Stage (£500 extra)

Sound

20 x dB Technologies T12 3000W Line Array Module
10 x dB Technologies S30n 3000W RMS Twin 18 Subwoofer
2 x dB Technologies Sigma 118 Subwoofer
2 x dB Technologies Sigma 115 2 Way Speaker
6 x 15inch Low Profile 1000w Stage Monitor
1 x Matrix 6 way Monitor Amplifier Rack
1 x Allen & Heath dLive S5000 inc Mixrack
1 x Allen & Heath SQ-7 Digital Mixer
1 x Festival band Mic package

Lighting

8 x ADJ Vizi Beam 5RX
6 x ADJ Inno Color Beam Z19
8 x ADJ 18P Hex Wash Light
8 x LEDJ Pixel Storm 12 Quad Batten MKII
4 x Chauvet Strike 4 Blinders
2 x Martin Atomic 3000 Strobe Light
1 x ADJ Entour Haze Pro

Transport & Crew

4 x Rig / De-rig Crew
1 x Lighting Engineer
2 x Sound Engineer
1 x Stage Technician
1 x Transportation (Milage Dependent)

Optional Extra's

As required, please enquire.

Power generators
LED Screens
Backline
Stage FX
FOH Tent
Mojo Barriers
Cable guards etc

Terms and Conditions

By entering into this hire agreement you are accepting our Terms and Conditions of the Hire upon receipt of goods and/or services from SBS Audio Visual.

Receipt includes arrival of equipment and/or staff on an event site, whether the customer is present or not. All equipment hired remains the property of SBS Audio Visual Ltd at all times.

Payment by the Customer on time under the Contract is an essential condition of the Contract. Payment shall not be deemed to be made until SBS Audio Visual has received either cash or cleared funds in respect of the full amount outstanding. If the Customer fails to make any payment in full on the due date we may charge the Customer interest on the amount unpaid at the rate of 8% implied by law under the Late Payment of Commercial Debts (Interest) Act 1998.

The Customer shall pay all sums due to the Supplier under this Contract without any set-off, deduction, counterclaim and/or any other withholding of monies.

The Hirer accepts full responsibility to SBS Audio Visual for loss or damage to or destruction of the equipment suffered during the period of hire from whatever cause the same may arise and is fully responsible for the safekeeping of the equipment and its return in equal order to SBS Audio Visual at the end of the hire.

The Hirer accepts all liability & responsibility in respect of & shall & completely indemnify SBS Audio Visual against all third party claims & losses howsoever arising in respect of damage to or loss or destruction of any property or in respect of the personal injury or death of anybody in any way caused by or relating to the equipment or its use.

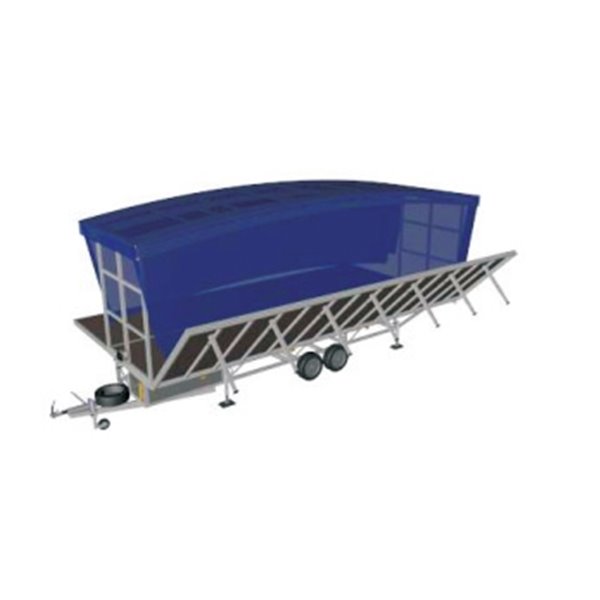

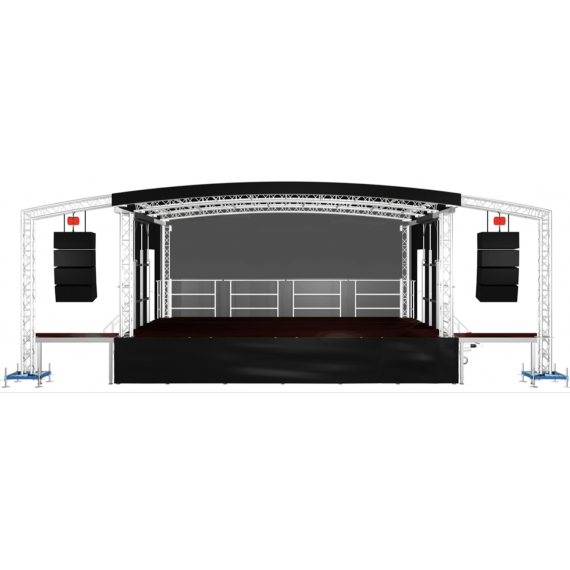

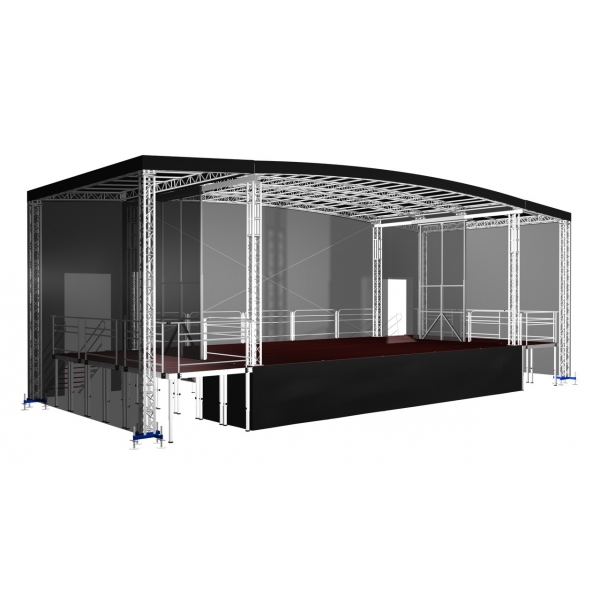

8m x 6m Trailer Stage

Small to Medium Sized Music Festivals

A great looking 8 x 6m mobile outdoor stage system available to hire for small to medium sized events were set up, de rig times and costs are limited.

If you are planning an event and need an outdoor mobile stage to hire then look no further, our mobile trailer stages are quick and easy to set up and look impressive.

Dimensions as a stage: 8 m x 6 m x 5 m  (L x W X H)
Stage area: 48 m2
Height of stage floor: 1,0 - 1,3m

See Specs tab for more details

Show more
Show less
Technical data
Type of roof profiled
Dimensions as a stage 8,0 m x 6,0 m x 5,0 m
Dimensions as a trailer 9,4 m x 2,46 m x 3,6 m
Way of lifting the roof manual-hydraulic or electric-hydraulic
Way of leveling the stage floor manual or electric-hydraulic
Permitted total weight 2500 kg
Stage area 48 m2
Height of stage floor 1,0 - 1,3 m
Stage floor slip proof, weather proof
Roof capacity 300 kg - uniformly on each arch - total 1200 kg
Floor capacity 3,5 kN/m2 (ok.350 kg/m2)
Quadrosystem pillars load capacity 50 kg
Flying Towers load capacity 500 kg (in the middle point)
Max. wind speed windzone 1 - 3 excepting the 5 km wide coastal areas and the islands of the North Sea and the Baltic Sea:. max 17.8 m/s with the back and sides cover and max 30 m/s without covers
Max. tickness of snow on the roof mobile stages should be used only in periods in which there is no snow, unless the snow is effectively removed, eg. by installing the appropriate heating devices
Canopy PCV certified material (flame resistant)
Scrim A203 (black)
Installation time 60 min (2 people)

DVA T12 features state-of-the-art neodymium speakers and high-performance DIGIPRO digital amps with total of 1,410W output power.
In combination with top-drawer DSP and premium quality AD-DA converter, it delivers high-definition sonic images with massive SPL for large sound reinforcement applications.

A 12“ neodymium woofer in a band-pass housing covers the low frequency range. Remarkably powerful, it packs an assertive punch that reaches down to 60 Hz to enable fullrange applications. The 12“ woofer is slanted inside the housing, giving the cabinet a lean, unobtrusive look.
Two 6.5“ neodymium midrange are placed close together to maximize coherent coupling and response for those critical midrange frequencies.
The speaker resides in a sealed basket to optimize the displacement volume. This makes the midrange even more responsive. With a high BL factor, it reacts far faster to transients and renders each attack with awesome accuracy. Both 6.5“ midrange are equipped with an optimized phase plug and feed into a frontloaded horn to achieve a uniform coverage pattern.
The DVA T12 is loaded with 3 1" HF drivers tuned specifically for the custom designed array horn. This combination maximizes the coupling of the drivers‘ outputs and extends the range of the HF signal.
Show more
Show less

Acoustical data

  • Frequency Response [+/- 3dB]: 60 - 19.000 Hz
  • Max SPL: One Unit: 136 dB
  • HF: 3x1 "
  • Voice Coil HF: 1.4 "
  • Directivity: 100x10 ° Single unit
  • Horn: Integrated CD Horn
  • MF: 2x 6.5 "
  • Type MF: Neodymium Sealed Basket Phase Plug Horn Loaded
  • Voice Coil MF: 2 "
  • LF: 12 "
  • Type LF: Neodymium
  • Voice Coil LF: 3 "
  • Amplifier
  • Amp Technology: Digipro® G2
  • Amp Class: Class D
  • HF Amp: 350 W RMS
  • MF Amp: 350 W RMS
  • LF Amp: 710 W RMS
  • Cooling: Convection

Processor

  • Controller: DSP 56 bit
  • AD/DA Converter: 24 bit/96 kHz
  • System Presets: 8, HF/Low-mid correction
  • Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
  • Crossover Frequency MF-HF: 1800 Hz
  • Slope MF-HF: 24 dB/Octave
  • Crossover Frequency LF-MF: 420 Hz
  • Slope LF-MF: 24 dB/Octave
  • Input
  • Signal Input: 1x XLR fem, Bal.
  • Signal Output: 1x XLR male, Bal.
  • Network: RDnet remote control RJ45 connector IN/OUT
  • Power Socket: 1x Powercon In 1x Powercon Out
  • Voltage Range: 90 - 240 V

Mechanics

  • Housing: Polypropylen PP Aluminium reinforced
  • Housing Design: Trapezoidal 10°
  • Rain Cover: Included
  • Rigging Points: Integrated rigging hardware

Featuring a dual 18" subwoofer pairing in a bass reflex housing, the dB Technologies DVA S30N is designed to pack a muscular, ultra low frequency punch. This subwoofer can be used as an addition to large PAs and as a compliment to mid and high-range units in stacked arrays.

The speakers's birch multiplex housing is covered in black textured lacquer and equipped with eight grips. On the back is a transport dolly that removes easily via quick release pins to keep the wheels from rattling.

Show more
Show less

Technical Data

  • Speaker Type: Active Bassreflex-Horn Subwoofer

Acoustical data

  • Frequency Response [+/- 3dB]: 30 – 120 Hz
  • Max SPL: 141 dB
  • Directivity: Omnidirectional, Cardiod Option with DSP setup
  • LF: 2×18 “
  • Voice Coil LF: 4 “

Amplifier

  • Amp Technology: Digipro® G2
  • Amp Class: Class D
  • Power Supply: 3 kW SMPS
  • LF Amp: 3000 W RMS
  • Cooling: Convection
  • Processor
  • Controller: DSP 56 bit
  • AD/DA Converter: DSP 24 bit/48 kHz
  • System Presets: X-Over,Delay
  • Phase: 0, 180 °
  • Limiter: RMS, Peak, Thermal
  • Delay Option: 0-4.5 ms internal
  • Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
  • LF-Xover out slope: 24 dB/Octave

Mechanics

  • Housing: Multiplex birch plywood
  • Housing Design: Rectangular
  • Handles: 4x Per Side
  • Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
  • Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
  • Width: 1100 mm (44 in)
  • Height: 580 mm (23.2 in)
  • Depth: 720 mm (28.8 in)
  • Weight: 83 kg (182.98 lbs)

The dB Technologies SIGMA S115 is a 1000 watt 15" / 1.4" active two-way system that is designed to be used as a full-range FOH speaker. The S115 has been engineered to achieve an assertive midrange, prominent top end, and constant directivity at high sound pressure levels.

The integrated digital sound processor allows the final touches to be made to your sound, rounding it out to a warm, natural tone with powerful bass and accurate high frequencies. A variety of signal processing presets are designed to allow you to dial in your sound with minimal fuss.

Show more
Show less

Specifications

  • 2x 15” active speakers
  • Frequency Response [-10dB]: 46 - 20.000 Hz
  • Max SPL: 133 dB
  • HF: 1.4”
  • Type HF: Titanium Compression driver
  • Voice Coil HF: 2.8”
  • Directivity: 60 x 40 °
  • Horn: CD Horn
  • LF: 15"
  • Voice Coil LF: 3"
  • Amp Technology: Digipro G2
  • Amp Class: Class D
  • Power PRG: 1000W
  • Peak Power: 2000W
  • Controller: DSP 24bit/48kHz
  • System Presets: Flat, Boost
  • Limiter: Dual Active Peak, RMS, Thermal
  • Crossover Frequency MF-HF: 1100 Hz
  • Slope MF-HF: 24 dB/Octave
  • Housing: Multiplex with H.E.T coating, reinforced
  • Dimensions: 509 x 765 x 533 mm
  • Weight: 33 kg

If you have a large selection of full-range speakers, it stands to reason that you should have an equally wide selection of subwoofers. That's why dB Technologies has added this 18-inch S118 subwoofer to the Sigma series. This subwoofer has borrowed a large number of its characteristics from other Sigma speakers.

Show more
Show less

Specifications

  • active subwoofer
  • bass reflex construction
  • 18-inch woofer with 4-inch voice coil
  • Digipro G2 amp module
  • internal 56-bit DSP signal processor
  • 24-bit, 48 kHz A/D converter
  • power capacity of amp module: 1400 watts
  • frequency range: 32 to 110 Hz (-10 dB)
  • maximum SPL: 134 dB
  • line input via XLR
  • link out via XLR
  • crossover out via XLR
  • adjustable crossover
  • professional locking power in/out
  • Hybrid Enclosure Technology cabinet construction
  • M20 pole mount option
  • scratch-resistant top layer
  • dimensions: 509 x 815 x 533 mm
  • weight: 38 kg

The S5000 is a medium-sized control surface for the dLive MixRack, with the addition of built-in audio I/O and audio networking ports.

It features 28 faders over 6 layers, dual 12″ capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

Desk layout and workflow is intuitive and clear. Touchscreen usability is excellent, with swipe and pinch-zoom gesture familiarity from mobile phone and tablet technology. The touchscreens are bright too, a notorious problem on digital desk displays at outdoor festivals when the sun actually shines. The build quality is also superb, designed to withstand the rigors of touring.

Show more
Show less

dLive S5000 Features

  • 28 faders
  • Fully assignable layout – 168 fader strips
  • Harmony UI integrates two 12" touch screens with gesture control and wrap-around controls including 3 pages of 6 assignable rotaries per screen.
  • 26 assignable SoftKeys
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out
  • Connection hub including dual redundant GigaACE gigabit link to MixRack, 1 redundant DX link for I/O expansion, 2 I/O ports (each 128ch at 96kHz), 2 network ports, wordclock BNC I/O, and video output





48 channel / 36 bus digital mixer

SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.

Powerful Processing

SQ comes equipped with all the processing you need to craft the perfect mix. Every one of the 48 inputs has HPF, a super-fast gate with sidechain and filter, a musical 4-band parametric equaliser, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required. The XCVI core even allows for every compressor in SQ to have its own parallel path, without phase or coherency worries.

RackExtra FX

SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.

Expandable up to 48 mics

SQ has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system.

The Mixing Experience

With each new design, the Allen & Heath team strives to get closer to the ultimate mixing experience. SQ’s dashboard is centred around a high-res 7” capacitive touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control. Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the colour strip displays, allowing you to build a mixing environment that mirrors your own workflow. Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.

Show more
Show less

Features

  • 96kHz FPGA processing
  • 48 Input Channels
  • DEEP Processing ready
  • 33 Faders / 6 Layers
  • 12 Stereo mixes + LR
  • 3 Stereo Matrix
  • 8 Stereo FX Engines + dedicated stereo returns
  • 7” capacitive touchscreen
  • SLink port for remote audio / expansion
  • 64ch I/O Port for audio networking
  • 32×32 USB audio interface
  • SQ-Drive direct recording to USB
  • AES output
  • Chromatic channel metering
  • Integrated LED illumination
  • Dedicated physical controls
  • 16 Assignable SoftKeys
  • 8 Assignable Soft Rotaries
  • Channel LCD displays
  • Compatible with ME-1 and ME-500, Audio Networking Card, Dante or Waves
  • Dimensions: 804 x 514.9 x 198 mm
  • Weight: 17.8 k
  •
  • Dimensions: 804 x 514.9 x 198 mm
  • Weight: 17.8 k
15inch Low Profile 1000w high power, differential dispersion stage monitors
Matrix 6 way Monitor Amplifier Rack

8u wheeled rack consisting of:

1 x Matrix XT2000 Power Amplifier x2 Channels 1000watt @ 4ohm
1 x Matrix XT4004 Power Amplifier x4 Channels 1000watt @ 4ohm
1 x DBX 1066 Stereo Compressor / Limiter
1 x DBX 1046 Quad Compressor / Limiter
1 x 6 way XLR / NL4 Patchbay
The ADJ Vizi Beam 5RX features a motorized focus and PowerCon In/Out for daisy chaining the power. Other professional features include: Frost filter to turn the hard edge beam to a wash, 8-facet prism, stepper motors for quick, precise movement.
Show more
Show less
The Vizi Beam 5RX Moving Head fixture is powered by the revolutionary Philips® Platinum 5R 189W discharge lamp technology (8000˚K, 3,000 hr). The powerful Platinum 5R has an output comparable to a 575W fixture, with double the output of a 575W fixture. It also offers a flat, even spot field and even more saturation of colors. The Vizi Beam 5RX is much faster than previous ADJ moving heads because it is much lighter in weight and more compact than other moving heads in its class. It’s very tight, 5-degree beam with extreme light output makes it ideal for applications where a small beam is necessary.

Specifications

• 2 DMX Channel Modes: 16 or 19 DMX channels

• Gobo scroll mode

• LED DMX 4-Button menu system

• 5-degree beam angle

• Auto X-Y repositioning

• 14 colors + white and Split Colors

• 17 static, fixed gobos + spot

• 8-facet Prism with macros

• Gobo Shake effect

• Independent gobo and color wheels

• Pan: 540-degree

• Tilt: 270-degree

• Pan/Tilt Invert

• Built-In Pan/Tilt Macros

• 16-Bit Pan/Tilt Positioning

• Motorized focus

• Shutter: Pulse effect; random strobe slow to fast

• Mechanical Dimming: 0% - 100%

• Strobe effect

• Frost Filter

• Stepper motors with micro stepping

• Omega Quicklock Brackets included

• DMX: 3-pin XLR In/Out
• Strobe Rate: 0.75-24.5HZ
• DB Rating @ 1Meter: Front: 45; Back: 47; Left: 46; Right: 46; Top: 47

• Light output: 770000 LUX  @ 5M, 220000 LUX @ 10M (5-degree beam)

• Powercon In/Out to daisy chain power

• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Cable Length: 1.5M (IEC)

• Lamp: Philips® Platinum 5R 189W discharge, 8,000˚K – 3,000 hr. long life

• Dimensions (LxWxH): 394x325x522mm / 15.5” x 12.75” x  20.5”

• Weight:  19 kg. / 42 lbs
• ETL Approved

The ADJ Inno Color Beam Z19 is a professional LED Moving Head fixture features motorized zoom allowing users to change the beam angle from10 to 60 degrees via DMX controls. Add the extremely versatile Inno Color Beam Z19 to your lighting set up no matter what your next show is - perfect for clubs, theaters, churches, concert productions and lighting professionals! This fixture offers 19x 10W RGBW Quad Color Osram LEDs that will keep the party going for 50,000 hours.
Show more
Show less
With its quick speed and built-in light shows, the Inno Color Beam Z19 brings pure lighting excitement to any venue. This fixture offers a wide range of professional features that let you customize your light show for the venue, music, and mood; Including electronic dimming, 64 built-in color macros, and pan/tilt reverse mode for contrasting movement when units are linked together. The ADJ Inno Color Beam Z19 fixture allows up to 5 fixtures (120V) or 11 fixtures (230V) to be power daisy-chained using IEC connector cables. The variable degree beam angle allows for increased creativity and versatility. Made from the highest quality components, this product will be the perfect addition to lighting production application.

Specifications

  •  High Output LED Moving Head Wash with motorized zoom
  •  Nineteen RGBW Quad Color (4-IN-1) Osram Ostar LEDs
  •  Motorized Zoom: 10 ~ 60-degree beam angle
  •  3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
  •  14 DMX channels
  •  64 Built-In Color Macros
  •  Electronic Dimming: 0% - 100%
  •  Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
  •  Fast Pan Tilt Movement
  •  Pan: 540-degree; Tilt: 220-degree
  •  16-Bit Fine Pan/Tilt control
  •  4-Button DMX LCD menu with 180° Inverse View mode
  •  Stepper motors with micro stepping
  •  Includes Omega bracket for truss mounting
  •  3-pin and 5-Pin XLR In/Out
  •  Fan cooled
  •  Electronic Strobe/Pulse effect; random strobe slow to fast
  •  PowerCON AC In/Out on rear to daisy chain power
  •   (up to 5 Inno Color Beam Z19’s @ 120V and 11 Inno Color Beam Z19’s @ 230V )
  • PWM (Pulse Width Modulation): 1.1K
  • Strobe Rate: 1-17HZ
  •  Light Source: 19 x 10W High Output Osram Ostar LED’s
  • Light Output: 29500 LUX @2M; 6900 LUX @4M (10-degree beam), 3600 LUX @2M; 900 LUX @4M (60-degree beam)
  •  Long Life LED (Rated at approximately 50,000 hrs)
  •  Multi-voltage Operation: 100-230V, 50Hz/60Hz
  •  Power Consumption: 245W
  • Power Cable Length: 1.5M (IEC)
  •  Dimensions (LxWxH): 13” x 7.5” x 15.75”/ 329 x 188 x 395mm
  •  Weight: 21 lbs. /9.5 kg.
  •  ETL Approved

Pixel Storm 12 Quad Batten MKII

The Pixel Storm 12 MKII is an individually pixel mappable batten featuring 12 x 15W quad-colour LEDs. With a 10° x 45° beam angle and smooth colour mixing, along with built-in colour macros, it is superb for wall washing due to its ellipsoidal beam angle. The 4 button LED menu allows selection of the built-in programs, RGBW colour mixing or multiple DMX channel modes. The 3kHz refresh rate and temperature controlled fan speed make this batten also suitable for stage and theatre applications.

Show more
Show less
FEATURES
- 12 x 15W quad-colour LEDs (RGBW)
- Beam angle: 10° x 45°
- 3,851 Lux @ 2m (full on)
- 3kHz refresh rate
- Pixel mapping capabilities
- DMX channels: 3/4/6/10/48 or 54 selectable
- Static colour, colour mix, colour change, colour fade, sound active and master/slave modes plus built-in programs
- 0 - 100% dimming and variable strobe
- End brackets and central bracket allow for multiple rigging and floor standing applications
- Eyebrow supplied to reduce glare and hide the LEDs when uplighting
- 4 push button menu with LCD display
- PowerCON input/output
- 3-Pin XLR input/output
- 5-Pin XLR input/output
- Temperature controlled fan for whisper quiet operation

SPECIFICATIONS

- 12 x 15W quad-colour LEDs (RGBW)
- Beam angle: 10° x 45°
- 3,851 Lux @ 2m (full on)
- 3kHz refresh rate
- Pixel mapping capabilities
- DMX channels: 3/4/6/10/48 or 54 selectable
- Static colour, colour mix, colour change, colour fade, sound active and master/slave modes plus built-in programs
- 0 - 100% dimming and variable strobe
- End brackets and central bracket allow for multiple rigging and floor standing applications
- Eyebrow supplied to reduce glare and hide the LEDs when uplighting
- 4 push button menu with LCD display
- PowerCON input/output
- 3-Pin XLR input/output
- 5-Pin XLR input/output
- Temperature controlled fan for whisper quiet operation

STRIKE 4 is an electrifying audience blinder and strobe with four high-power 100 W COB LEDs housed in independently focusable pods. It’s the go-to-choice for high energy automated strobe effects and its smooth 16-bit dimming curve facilitates incandescent-style fades. Its adjustable PWM is ideal in film and studio applications. STRIKE 4 comes standard with basic and advanced control personalities for flexibility in programming, and an easy-to-read OLED display for quick on-board adjustments.

Show more
Show less

Product Features

  • 16-bit dimming control for smooth, perfect fades
  • Individual pan of each head to allow for directional adjustment of light output
  • Simple and complex DMX channel profiles for programming flexibility
  • Easy to use OLED display
  • Automated strobing programs for easy programming
  • Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera

Product Specifications

Optical

  • Light Source:  4 LEDs (WW) 100 W, (2.3 A), 3096 K, 50,000 hours life expectancy
  • Colour Temperature (at full):  3096 K
  • Beam Angle:  49°
  • Field Angle:  79°
  • Illuminance (total):  999 lux @ 5 m
  • Illuminance (per cell):  242 lux @ 5 m
  • Pixels:  2 x 2
  • Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

  • Pan:  ± 24° manual adjustment per pod
  • Dimmer:  Electronic
  • Shutter/Strobe:  Electronic
  • Strobe Rate:  0 to 30 Hz
  • Standalone Colour Mixing:  Yes
  • Dim Modes:  4
  • Built-in Automated Programs:  Yes

Connections

  • Power Connection:  Edison (Local) plug to Neutrik powerCON
  • Power Input:  Neutrik powerCON
  • Power Output:  Neutrik powerCON
  • Data Connectors:  5-pin XLR
  • Cable Length (power):  1.5 m

Control

  • Control Protocol:  DMX
  • DMX Channels:  1, 3, 4 or 9

Electrical

  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking:  5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
  • Power and Current:  301 W, 2.49 A @ 120 V, 60 Hz
  • Power and Current:  287 W, 1.43 A @ 208 V, 60 Hz
  • Power and Current:  286 W, 1.29 A @ 230 V, 50 Hz

Physical & Dimensions

  • Dimensions:  362 x 163 x 362 mm
  • Weight:  8.7 kg
  • Exterior Colour:  Black
  • Housing Material:  Aluminium die-cast
  • Certifications / Qualifications
  • CEIP Rating:  IP20, dry location

The Atomic 3000 DMX is a powerful and rugged, 3000 W high-impact strobe. The Atomic is dimmable from 0-100%. Flash duration is controllable and for ultimate flexibility and variety of effect, variable adjustment of flash rate (20ms to 2 seconds) and flash intensity is possible. The Atomic 3000 DMX is both intense and intelligent. DMX controllable, it employs a smart, integrated heat control that eliminates the need for cool down time.

Show more
Show less

Dynamic Effects:

- Variable strobe: 0 - 650 ms (50 Hz supply), or 0 - 530 ms (60 Hz supply)

- Strobe rate: 0 - 25 flashes/second (50 Hz supply), 0 - 30 flashes/second (60 Hz supply)

- Blinder effect: Continuous with auto fade Strobe intensity: Blackout - maximum

- Special effects: Ramp up, ramp down, ramp up-down, random flash, lightning, spikes, blinder, single flash

Control and Programming:

- Control options: DMX, stand-alone, multi-fixture chase (with Detonator remote), MC-1

- DMX channels: 1, 3, and 4 channel modes - Stand-alone control: Via N.O. or N.C. SPST switch

- Stand-alone options: Selectable flash rate or blinder effect

- Setting and addressing: DIP switch

- DMX Compliance: USITT DMX512/1990

- Receiver: RS-485

Part of the expanding ADJ Entour Series of atmospheric machines, the Entour Haze Pro is a touring-grade haze machine built into a durable flight case. It requires no warm-up time and, with an air pressure of 101psi, is able to generate an impressive output of 3,000 cubic ft. per minute. This allows large stages and venues to be easily and quickly filled with lightshow-enhancing haze whenever it is required. The machine uses Haze/G™ oil-based liquid and has an external fluid tank capacity of 2.5 Liters. It has an extremely efficient fluid consumption rate of 15 hours continuous output per Liter, which means that 37.5 hours of haze can be generated from a single tank of fluid.
Show more
Show less

This professional-caliber haze generator features an easy to read LED function display, with in-built timer, which allows continuous, intermittent or manually-triggered hazing. It features a locking PowerCON mains input socket and is fitted with both 3-pin and 5-pin XLR sockets allowing DMX control with a choice of 1-, 2-, and 4-channel modes. Measuring 20.75” x 15” x 15” / 530 x 380 x 380mm (LxWxH) and weighing in at 70 lbs. / 31 kg, the unit is fitted with heavy-duty handles on either side which make it easy to lift, carry and position the machine.

The Entour Haze Pro is designed for large stages and venues and for outdoor applications where the oil based haze will sit longer in the air.

Specifications

• Mobile DMX Haze Machine

• Great for stage performances, bands, clubs, bowling centers etc.

• 3 DMX Channel Modes; 1/2/4

• LCD Function Display with built-in remote with Haze Timer, Continuous Hazing & Manual Hazing

• No Warm-up time necessary

• Air Pressure: 101 psi

• Output: 3,000 cubic ft. per min

• External fluid tank: 2.5 Liter

• Fluid Consumption Rate: 15 Hours continuous work / per Liter

• 3-pin & 5-pin DMX In/Out

• Power Consumption: 410W

• PowerCON Input

• Uses Haze/G™ oil based liquid only

• Dimensions (LxWxH): 20.75” x 15” x 15” / 530 x 380 x 380mm

• Weight: 70 lbs. / 31 kg.

Rent this item

Booking Fees

Day:
£7,953.22

Weekend:
£15,906.43

Week:
£23,859.65

Choose booking dates

Start Date:

End Date:

Collection or Delivery

  • Collect in person
    You can collect your items free of charge from our warehouse in Manchester, collection times are 9am to 5pm Monday to Friday and Saturday by appointment.
  • Delivery
    Delivery costs start from £20.00 each way, and can be calculated once we have confirmed your full delivery address.

TOTAL £7,953.22
