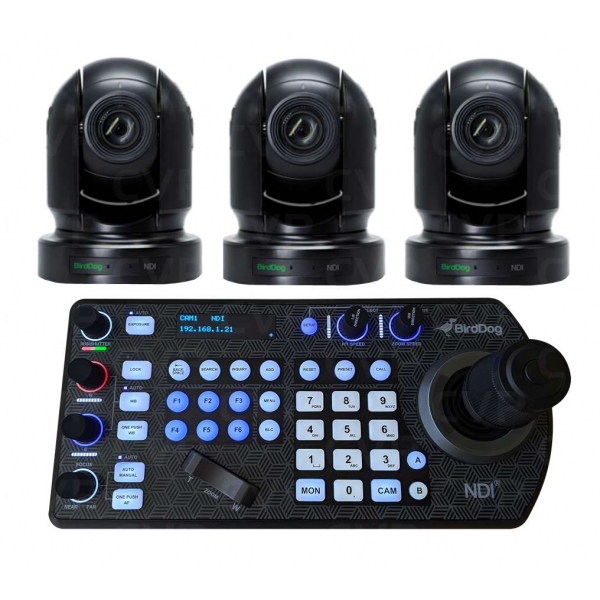

BirdDog 3x P200 PTZ + Controller Kit - Black
- Make : Bird Dog
- Model : Bird Dog EYES P200
- Dimensions : 145x145x154mm
- 30x Optical Zoom
- Sony CMOS Backlit Sensor Full Sony Image Module
- Triple output – NDI, SDI, and HDMI all simultaneous
- Broadcast quality image sensor
- Super low latency
- Available in Black or White
Terms and Conditions
By entering into this hire agreement you are accepting our Terms and Conditions of the Hire upon receipt of goods and/or services from SBS Audio Visual.
Receipt includes arrival of equipment and/or staff on an event site, whether the customer is present or not. All equipment hired remains the property of SBS Audio Visual Ltd at all times.
Payment by the Customer on time under the Contract is an essential condition of the Contract. Payment shall not be deemed to be made until SBS Audio Visual has received either cash or cleared funds in respect of the full amount outstanding. If the Customer fails to make any payment in full on the due date we may charge the Customer interest on the amount unpaid at the rate of 8% implied by law under the Late Payment of Commercial Debts (Interest) Act 1998.
The Customer shall pay all sums due to the Supplier under this Contract without any set-off, deduction, counterclaim and/or any other withholding of monies.
The Hirer accepts full responsibility to SBS Audio Visual for loss or damage to or destruction of the equipment suffered during the period of hire from whatever cause the same may arise and is fully responsible for the safekeeping of the equipment and its return in equal order to SBS Audio Visual at the end of the hire.
The Hirer accepts all liability & responsibility in respect of & shall & completely indemnify SBS Audio Visual against all third party claims & losses howsoever arising in respect of damage to or loss or destruction of any property or in respect of the personal injury or death of anybody in any way caused by or relating to the equipment or its use.

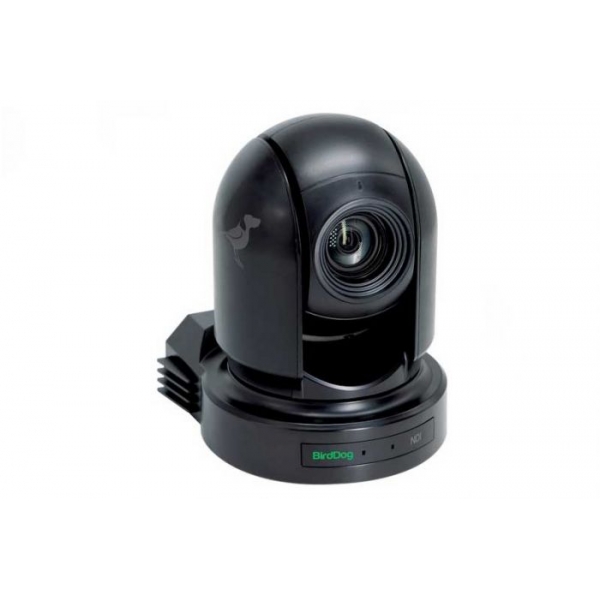

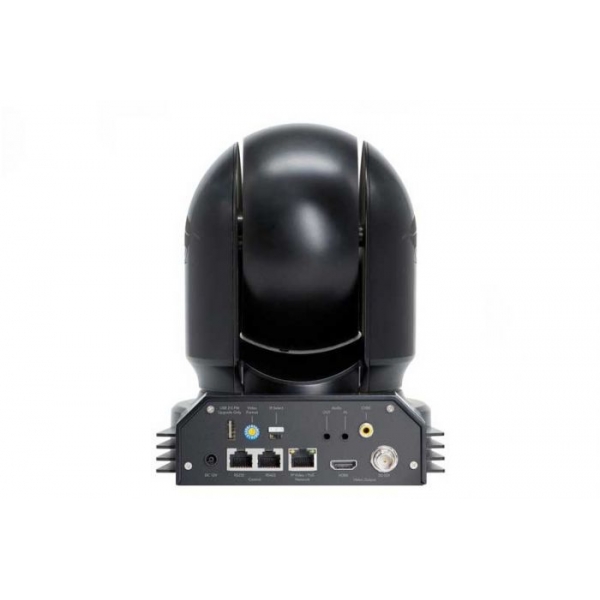

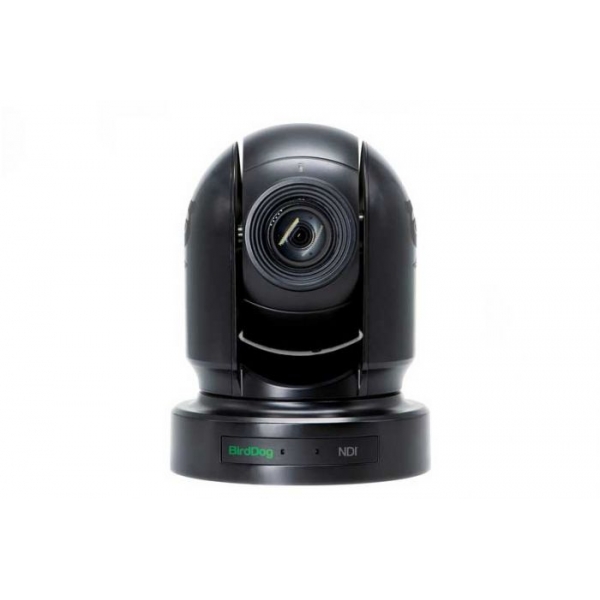

BirdDog Eyes P200 NDI PTZ Camera (Black)
NDI® has never looked so good – Designed for serious production the image quality of P200 is best in class. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS Backlit Sensor, and a true Sony Image Module, P200 has lightening auto focus, incredibly sharp images, and insanely fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and features independent, live triple outputs in SDI, HDMI and Full NDI®.
Full NDI®. No compromises – In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P200 is a Full NDI® camera.
Tally light that just works – NDI® has tally information built into the metadata so when P200 is connected to an NDI® enabled switcher the tally light on the front of the unit to ensure your on air talent will always know which camera is live. There is no configuration required; it just works.
Sony Sensor. You deserve the best – The best pictures come from the best silicon. P200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.
Sony Image Module. Optics done right – Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. P200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.
Triple output. NDI®, SDI and HDMI – With NDI®, SDI, and HDMI simultaneous outputs the P200 is ready to go live with your full NDI® workflow today or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232. No matter which way you like to work, you can rest easy in the knowledge that P200 has you covered for all workflow situations.
30x Optical zoom. Over there is now over here – Never miss a shot again. 30x optical zoom brings the whole world to you. Now you can zoom in to the other end of a football game and stay locked in on the action. The incredible optical zoom function makes P200 perfect for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.
PoE or DC. You have the power – P200 can be powered by Power over Ethernet (PoE) or from the included power adapter.
PTZ Keyboard. Take control – Combine P200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control P200 over NDI® or by RS422 / RS232 when using in SDI mode.
| Camera | |
|---|---|
| Image Sensor: | 1 / 2.8 inch CMOS 2.13MP |
| Lens: | 4.3-129mm |
| Optical Zoom: | 30x |
| Digital Zoom: | 12x |
| Horizontal Angle of View: | 63.7° (W) – 2.3°(T) |
| Aperture: | F1.6 (W) – F4.7 (T) |
| Min. Illumination: | Color: 0.01 lux (F1.6, AGC on, 1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode) |
| Shutter Speed: | 1/1 – 1/10000s |
| Focus: | Auto, Push, Manual |
| White Balance: | Auto, Indoor, Outdoor, Manual, OPW, ATW |
| Exposure: | Auto, Manual, Shutter/Iris Priority |
| Backlight Compensation: | YES |
| Mechanical | |
| Pan Movement: | Horizontal: ±350º continuous pan (Zoom Adaptive Speed Range: 0.05º〜100º/S ) |
| Tilt Movement: | Vertical: +90º to -30º (Zoom Adaptive Speed Range: 0.05°〜50°/S) |
| Preset Positions: | 128 (Speed adjustable: Up to 150°/s) |
| Preset Speed: | 0 – 5 Level adjustable |
| Environmental: | Indoor |
| Operating Temperature: | -10 – +50 (°C) |
| Operating Humidity: | ≤80% |
| Video Interface | |
| Video Output: | NDI/SDI/HDMI |
| Video Formats: | 1080p 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50 720p 60, 59.94, 50, 29.97, 25 |
| Audio I/O: | 3.5mm Audio In (Stereo) 3.5mm Audio Out (Stereo) |
| Control interface | |
| IP PTZ Control: | NDI Control (auto configuring) |
| Serial PTZ Control: | 2x RJ45: RS232/RS422/RS485 |
| Serial Control Protocol: | VISCA / Pelco D |
| Power & Dimensions | |
| Power Input: | 12v DCm, PoE+ (IEEE 802.3at) |
| Dimension: | 160x178x220mm |
| Weight: | 2.0Kg |
| Network | |
| Video Compression: | Full NDI – i-frame high quality low latency NDI for production |
| Network Protocol: | NDI – Discovery, configuration and control |
| Web Control Interface: | Full control via Web/Mobile UI including Scene presets |

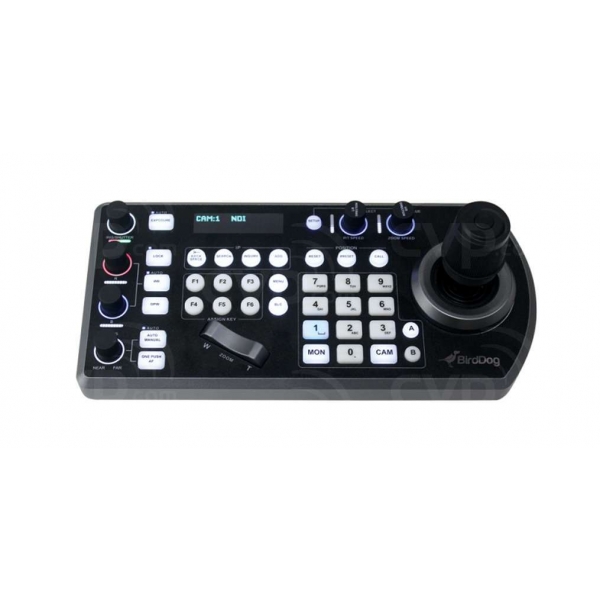

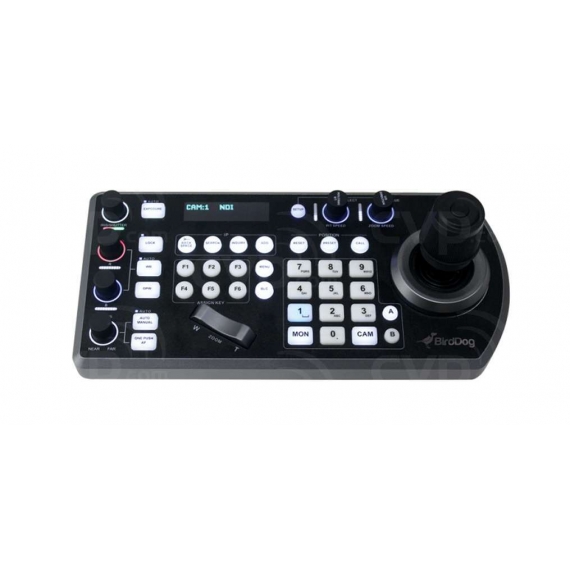

BirdDog PTZ Keyboard Controller For P100/200
BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI, NDI|HX, Visca over IP, RS422, and RS232.
By harnessing BirdDog’s next generation NDI and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for. Designed to control up to 255 PTZ cameras on a single network, PTZ Keyboard can scale to even the most complex installations. Set up your quick access buttons to access Exposure, Focus, PT Speed, Zoom, Shutter Speed, Iris, White Balance, and Compensation.
The beautiful multi-coloured buttons and keys gives easy visual cues and makes using the PTZ Keyboard a breeze. Set up to 256 presets with memory of image parameters including camera moves (requires camera support).
Universal Control
Never before has a PTZ controller been so flexible. PTZ Keyboard is the world’s first PTZ controller with NDI and NDI|HX support. Along with NDI there is support for Visca over IP, RS422, and RS232.
Beautiful Erognomics
Using the PTZ Keyboard is a breeze with well thought out button layout. Quickly access all the cameras on the network, and set up quick access buttons for all your favourite settings such as Exposure, Focus, Zoom, and movement speeds.
Power Over Everything
Super flexible powering options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or even over the serial port. Never get stuck in a situation where you can’t power up.
Comms
PTZ Keyboard is the world’s first PTZ controller with Audio Intercom support over NDI. PTZ Keyvboard is compatible with BirdDog Comms. Comms is a complete Audio Intercom solution which can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
| Input/Output Connectors | Control Input/Output |
| LAN: RJ45 x1 (with PoE) 100 Base TX | |
| RS232: RJ45 x1 | |
| RS422: RJ45 x2 | |
| Control Signal Format | NDI CONTROL |
| VISCA over IP | |
| RS 232/ RS422 : Baud Rate 2400 / 4800 / 9600 / 19200 / 38400 | |
| User Interface | |
| Display | LED |
| Speed control | Yes, 2 knobs (pan/tilt, zoom) |
| Zoom rocker | Yes |
| Zoom ring ibn joystick | Yes |
| Programmable function buttons | 6 |
| Camera Control | |
| Maximum Camera Control | Max. 255 with multiple protocols including NDI/IP |
| Maximum Serial Connections | N/A |
| RS232 | 7 |
| RS422 | 7 |
| Key/Button Illumination | Multi-Colour LED |
| Buttons | |
| Exposure Selection | Yes, Button |
| One Push White Balance | Yes, Button |
| Backlight Control | Yes, Button |
| Display Status of WB, Iris, Gain, Shutter, Focus | Yes |
| White Balance Model Selection | Yes, Button |
| R, B, Gain | Yes, Knob |
| Iris Adjustment | Yes, Knob |
| Shutter Speed | Yes, Knob |
| Focus Model Selection | Yes, Button |
| One Push Auto Focus | Yes, Button |
| Manual Focus | Yes, Knob |
| General | |
| Power Input | DC 12V, PoE (power over ethernet) Power via RS232/RS422 port |
| Current | 3W |
| Operating Temperature | 0-40oC |
| Dimensions | 278 x 132 x 99.5 |
