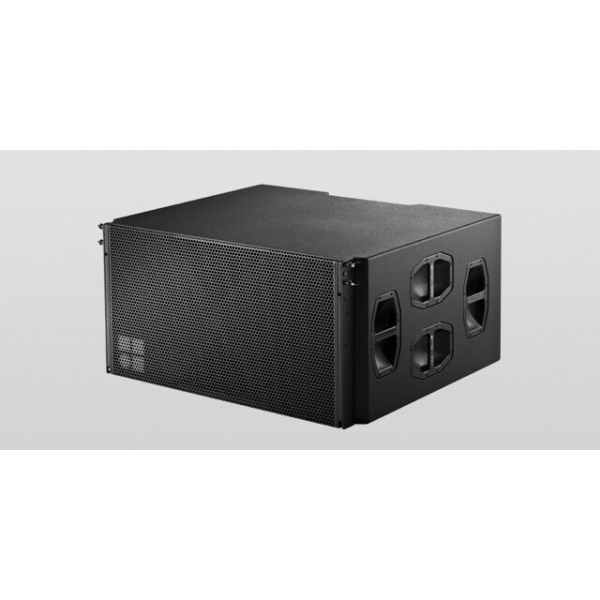

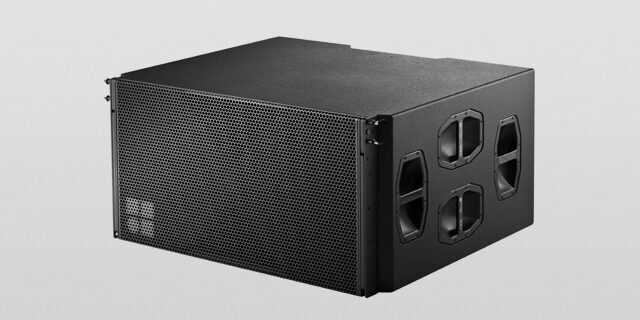

d&b audiotechnik J Sub Subwoofer

d&b audiotechnik J Sub Subwoofer

Hire d&b audiotechnik J Sub Subwoofer

    • Day£ 80.00
    • Weekend£ 120.00
    • Week£ 160.00
Category Specification
System Type High-performance subwoofer
Intended Use Touring sound reinforcement and permanent installation
Frequency Response 32 Hz – 100 Hz
Low-Frequency Transducers 2 × 18" neodymium long-excursion drivers
Enclosure Design Bass-reflex
Maximum SPL (Peak) Up to 143 dB
Nominal Power Handling 2 × 800 W
Nominal Impedance 4 Ω
Dispersion Characteristics Omnidirectional (frequency dependent)
Recommended Amplifiers d&b J-Series amplifiers (e.g., D80)
Signal Processing Dedicated J-SUB presets, cardioid configuration support, protection limiting
Input / Link Connectors 2 × NL4
Cabinet Orientation Ground-stacked or flown
Enclosure Material Marine-grade plywood
Cabinet Finish Polyurea Cabinet Protection (PCP)
Grille Heavy-duty steel grille with acoustically transparent foam backing
Rigging System Integrated rigging hardware compatible with J-Series arrays
Dimensions (H × W × D) Approx. 568 × 1100 × 760 mm
Weight Approx. 88 kg (194 lb)
Operating Temperature Range –10 °C to +50 °C
Environmental Suitability Outdoor use with appropriate system protection
System Compatibility d&b J-Series line array loudspeakers (J12, J8)

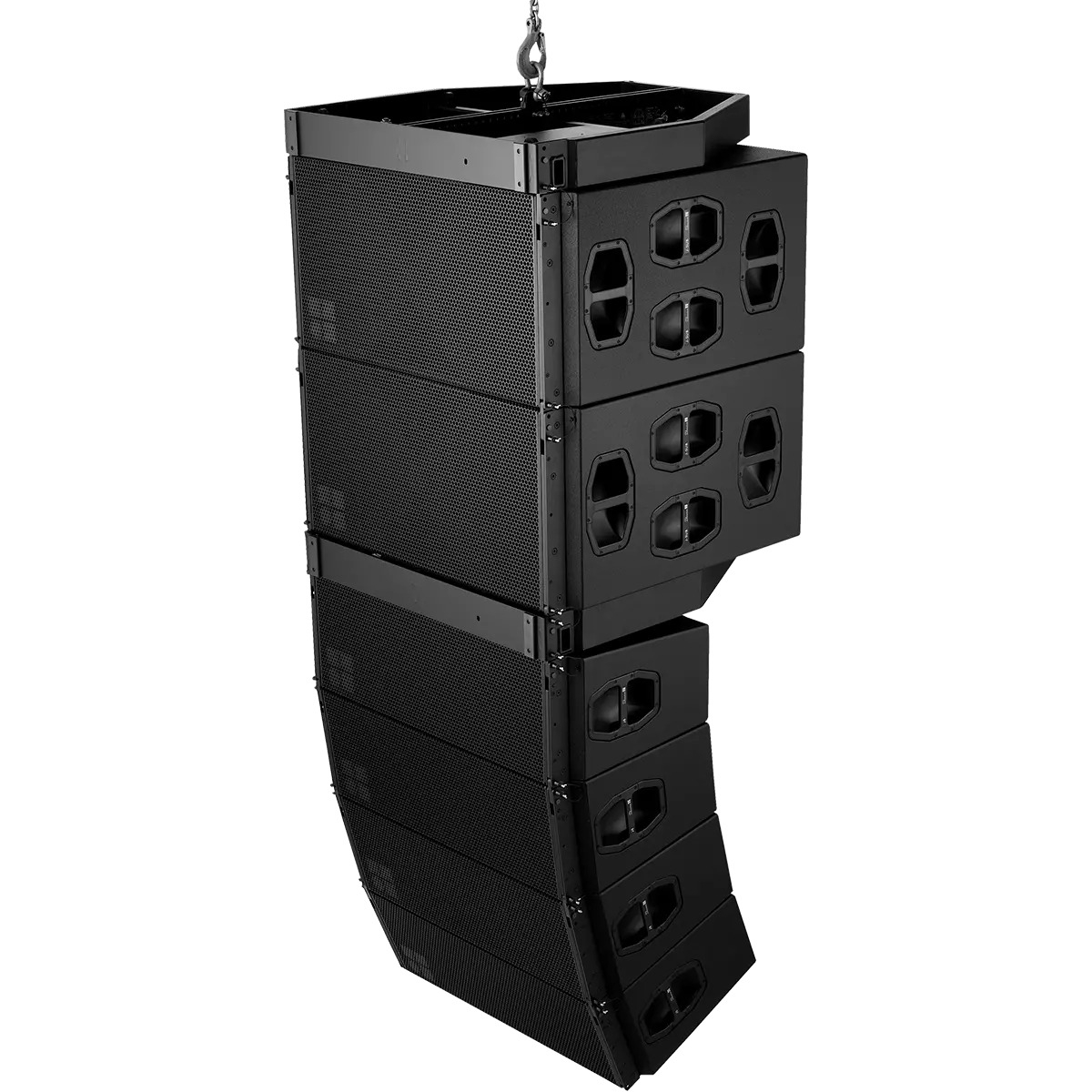

The J-SUB is an actively driven 2-way bass-reflex design housing three long excursion neodymium 18" drivers, two drivers face to the front and one driver to the rear. The cardioid dispersion pattern resulting from this approach avoids unwanted energy behind the system, which greatly reduces the reverberant field at low frequencies and provides the greatest accuracy of low frequency reproduction. J-SUB cabinets can be used to supplement J8 and J12 loudspeakers in various combinations, ground stacked or flown, either integrated on top of a J8 / J12 array or as a separate column. The J-SUB cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front and rear of the loudspeaker cabinet are protected by a rigid metal gri

Terms and Conditions

By entering into this hire agreement you are accepting our Terms and Conditions of the Hire upon receipt of goods and/or services from SBS Audio Visual.

Receipt includes arrival of equipment and/or staff on an event site, whether the customer is present or not. All equipment hired remains the property of SBS Audio Visual Ltd at all times.

Payment by the Customer on time under the Contract is an essential condition of the Contract. Payment shall not be deemed to be made until SBS Audio Visual has received either cash or cleared funds in respect of the full amount outstanding. If the Customer fails to make any payment in full on the due date we may charge the Customer interest on the amount unpaid at the rate of 8% implied by law under the Late Payment of Commercial Debts (Interest) Act 1998.

The Customer shall pay all sums due to the Supplier under this Contract without any set-off, deduction, counterclaim and/or any other withholding of monies.

The Hirer accepts full responsibility to SBS Audio Visual for loss or damage to or destruction of the equipment suffered during the period of hire from whatever cause the same may arise and is fully responsible for the safekeeping of the equipment and its return in equal order to SBS Audio Visual at the end of the hire.

The Hirer accepts all liability & responsibility in respect of & shall & completely indemnify SBS Audio Visual against all third party claims & losses howsoever arising in respect of damage to or loss or destruction of any property or in respect of the personal injury or death of anybody in any way caused by or relating to the equipment or its use.

Category Specification
System Type High-performance subwoofer
Intended Use Touring sound reinforcement and permanent installation
Frequency Response 32 Hz – 100 Hz
Low-Frequency Transducers 2 × 18" neodymium long-excursion drivers
Enclosure Design Bass-reflex
Maximum SPL (Peak) Up to 143 dB
Nominal Power Handling 2 × 800 W
Nominal Impedance 4 Ω
Dispersion Characteristics Omnidirectional (frequency dependent)
Recommended Amplifiers d&b J-Series amplifiers (e.g., D80)
Signal Processing Dedicated J-SUB presets, cardioid configuration support, protection limiting
Input / Link Connectors 2 × NL4
Cabinet Orientation Ground-stacked or flown
Enclosure Material Marine-grade plywood
Cabinet Finish Polyurea Cabinet Protection (PCP)
Grille Heavy-duty steel grille with acoustically transparent foam backing
Rigging System Integrated rigging hardware compatible with J-Series arrays
Dimensions (H × W × D) Approx. 568 × 1100 × 760 mm
Weight Approx. 88 kg (194 lb)
Operating Temperature Range –10 °C to +50 °C
Environmental Suitability Outdoor use with appropriate system protection
System Compatibility d&b J-Series line array loudspeakers (J12, J8)
