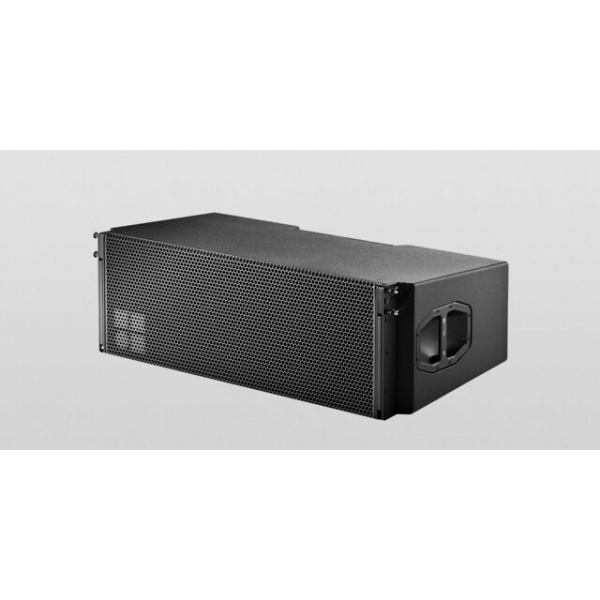

d&b audiotechnik J12 Loudspeaker

d&b audiotechnik J12 Loudspeaker
d&b audiotechnik J12 Loudspeakerd&b audiotechnik J12 Loudspeaker

Hire d&b audiotechnik J12 Loudspeaker

    • Day£ 60.00
    • Weekend£ 90.00
    • Week£ 120.00
Category Specification
System Type Three-way active line array loudspeaker
Intended Use Touring sound reinforcement and permanent installation
Nominal Horizontal Dispersion 120°
Maximum Array Size Up to 24 cabinets (flown)
Vertical Splay Angles 0° to 7° in 1° increments
Low-Frequency Transducers 2 × 12" neodymium drivers
Mid-Frequency Transducer 1 × 10" horn-loaded neodymium driver
High-Frequency Transducers 2 × 1.4" exit compression drivers with 3" voice coils
Wave-Shaping Technology Integrated for coherent summation and vertical control
Frequency Response 60 Hz – 18 kHz
Maximum SPL (Peak) Up to 143 dB
Directivity Constant horizontal dispersion; array-dependent vertical control
Nominal Power Handling (LF) 2 × 400 W
Nominal Power Handling (MF) 300 W
Nominal Power Handling (HF) 150 W
Nominal Impedance 4 Ω
Recommended Amplifiers d&b J-Series amplifiers (e.g., D80)
Signal Processing Dedicated J12 presets, array processing, protection limiting
Input / Link Connectors 2 × NL4
Enclosure Material Marine-grade plywood
Cabinet Finish Polyurea Cabinet Protection (PCP)
Grille Steel grille with acoustically transparent foam
Rigging System Integrated three-point rigging hardware
Dimensions (H × W × D) Approx. 368 × 1100 × 525 mm
Weight Approx. 56 kg (123 lb)
Operating Temperature Range –10 °C to +50 °C
Environmental Suitability Outdoor use with appropriate system protection
System Compatibility d&b J-Series components (J8, J-SUB)

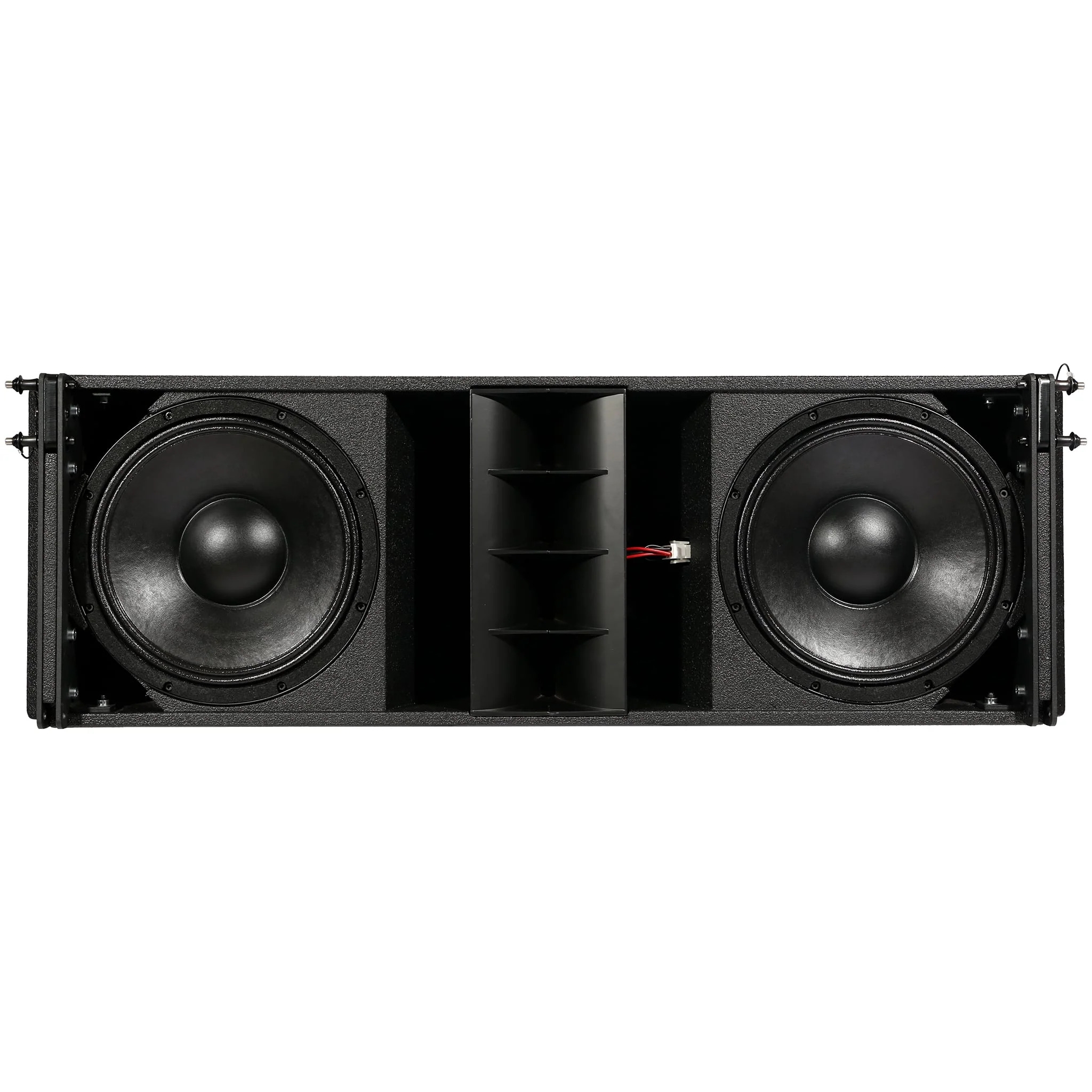

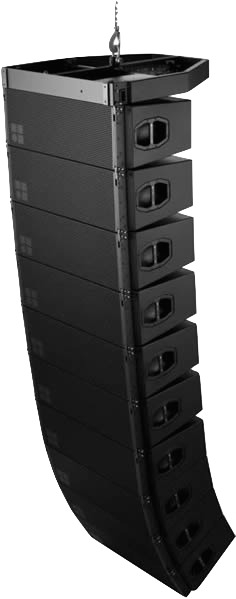

The J12 is a 3-way design housing 2 x 12" LF drivers, one hornloaded 10" MF driver and two 1.4" exit HF compression drivers with 3" voicecoils mounted to a dedicated waveshaping device. The mechanical and acoustical design enables flown vertical columns of up to 24 loudspeakers to be suspended using vertical splay angles between them of 0° to 7° with a 1° resolution. The cylindrical wave segments produced couple coherently in the vertical plane. Due to the dipolar arrangement of the neodymium LF drivers the exceptional 120° horizontal constant directivity dispersion control is nominally maintained down to 250 Hz. The J12 is acoustically and mechanically compatible to the J8 loudspeaker. It can be used in columns of purely J12 loudspeakers or combined with J8s and / or with J-SUBs. The
